702Q Recessed without trim light

Back


PowerL*W*H(mm)Lumen/PowerItem No
Low1188*70*582000lm/20W702Q.F120W
1478*70*582500lm/25W702Q.F125W
2348*70*584000lm/40W702Q.F140W
Medium1188*70*582800lm/28W702Q.A128W
1478*70*583500lm/35W702Q.A135W
2348*70*585600lm/56W702Q.A156W
High1188*70*583500lm/35W702Q.D135W
1478*70*584400lm/44W702Q.D144W
2348*70*587000lm/70W702Q.D170W


Material & technology

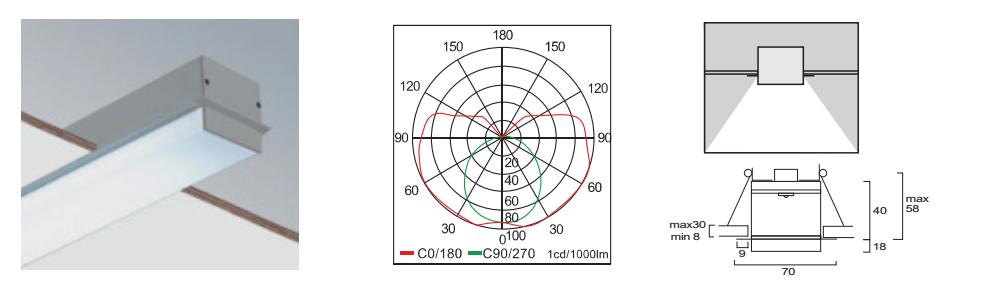

Light distribution：Down&side Light

Light source：High brightness SMD LED, or T5 (G5)

Color rendering：CRI≥80, can customize CRI≥90

CCT：3000K, 4000K, 6500K, can customize 5000K

Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Other functions：Optional with emergency kits and multifunction sensor

Lamp material：High grade anodizing aluminum (6063 Alloy), painted with Pure White, can customize other color

Diffuser：Opal prismatic diffuser

End caps material：ABS

IP：20

Installation：Q-Recessed without trim，Make shadowless continuous lighting system
